Structured Output

Structured output generation forces a model to produce responses that follow a defined format - for example JSON, a regular expression, or an EBNF grammar. OpenVINO GenAI provides a flexible structured output enforcement so the model can generate well‑formed output.

How It Works

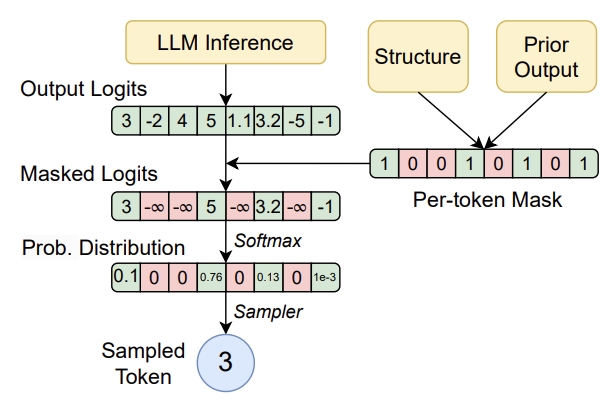

Structured output generation consists of several steps:

1. Compile the structured-output configuration (JSON Schema, regex, or EBNF grammar) into an internal grammar representation.
2. After the model computes the probability distribution for the next token, a mask is applied that prevents tokens incompatible with the current grammar state from being sampled.
3. When a token is sampled, advance the grammar state and recompute the mask for the next sampling round.

Refer to XGrammar paper for more details.

info

Structured enforcement guarantees the syntactic format but not the semantic correctness of generated data. Always validate and sanitize outputs.

info

Structured constraints can affect model behavior and may reduce accuracy on some downstream tasks.

What OpenVINO GenAI Provides

• Base structured output formats: JSON, regex, and grammar (EBNF) based structured generation.
• Structural tags:
  • Compound grammars: combine several grammars to handle more complex tasks or enforce different function calling styles.
  • Tags: blend regular free-form generation with structural tags during single generate call.

Structured Output Configuration

Structured output is configured through a StructuredOutputConfig (exposed in the Python and C++ APIs). The main options are:

• json_schema - a JSON Schema that the generator will try to satisfy; useful when you need typed fields and nested structures.
• regex - a regular expression that the output must match.
• grammar - an EBNF grammar that describes structure of the output.
• structural_tags_config and compound_grammar - advanced options to combine multiple grammars.

info

You should set only one primary structured constraint (for example json_schema, regex, or grammar) on a StructuredOutputConfig instance. The library validates the configuration and will raise an error if conflicting constraints are provided (for example both json_schema and regex).

Deprecation Note

The StructuralTagsConfig class and the compound_grammar field are deprecated. Use the structural_tags_config field on StructuredOutputConfig instead; it provides the same functionality and is the recommended API going forward.

Using Structured Output

Examples

Python

import json
import openvino_genai as ov_genai


pipe = ov_genai.LLMPipeline(model_path, "CPU")

# Structured output configuration: simple JSON schema
so_config = ov_genai.StructuredOutputConfig(
    json_schema=json.dumps({
        "type": "object",
        "properties": {
            "name": {"type": "string"},
            "age": {"type": "integer"}
        },
        "required": ["name"]
    }),
)
gen_config = ov_genai.GenerationConfig(max_new_tokens=100, structured_output_config=so_config)

prompt = "Extract a person's name and age from the text and return only a JSON object.\nText: 'Alice is 29 years old.'"
result = pipe.generate(prompt, generation_config=gen_config)
print(json.loads(result))

C++

#include <openvino/genai/llm_pipeline.hpp>

using namespace ov::genai;

int main() {
    std::string models_path = "/path/to/model/dir";
    auto pipe = LLMPipeline(models_path, "CPU");

    // Build a JSON schema object (represented using the SDK types) and configure structured output
    StructuredOutputConfig so_config;
    so_config.json_schema = R"({
        "type": "object",
        "properties": {
            "name": {"type": "string"},
            "age": {"type": "integer"}
        },
        "required": ["name"]
    })";

    std::string prompt = "Extract a person's name and age and return only a JSON object.\nText: 'Bob is 34 years old.'";

    // Attach structured output config to a GenerationConfig and call generate
    GenerationConfig gen_config;
    gen_config.max_new_tokens = 100;
    gen_config.structured_output_config = so_config;

    auto result = pipe.generate(prompt, gen_config);

    std::cout << "Model output: " << result.texts[0] << std::endl;
    return 0;
}

Samples and Further Reading

You can find complete sample programs that demonstrate structured output generation here:

• Python sample
• C++ sample
• Combining multiple grammars for structured output
• Trigger structured output during regular generation run
• Test-driven examples (comprehensive examples covering JSON, regex, EBNF and structural tags)

OpenVINO GenAI JavaScript bindings also support the Structured Output feature. Check JS samples for usage examples.
